30mm High Scope Mounts for Weaver & Picatinny Rifle Rails

By /

PurpleBox 30mm High Scope Rings Suitable for all Weaver / Picatinny rails. Includes square section hardened steel arrestor bolt. Up to 56mm lens diameter (on most rifles) A B C Dimensions Explained

HTO67C

HTO67C

2 PIECE HIGH WEAVER / PICATINNY 30mm

A = 21mm / 0.827 inch

B = 21mm / 0.827 inch

D =

Weight 124g

Includes square section hardened steel arrestor bolt

View Product
HETO68C

HETO68C

2 PIECE HIGH WEAVER / PICATINNY EXTENDED

A = 21mm / 0.827 inch

B = 21mm and 46mm (0.827 & 1.811 inch)

C = 6mm / 0.236 inch

D =

Weight 138g

Includes square section hardened steel arrestor bolt. Increases / reduces eye relief by 25mm (1 inch)

View Product
ATP72

ATP72

2 PIECE HIGH WEAVER / PICATINNY ADJUSTABLE

A = 21mm – 22.5mm / 0.827 – 0.885 inch

B = 21mm / 0.827 inch

D =

Weight 134g

Adjustable for elevation upto 50 MOA & height. Ideal for long range shooting. High Tensile construction with a totally solid mechanism. Elevation can be precisely adjusted using the enclosed allen key and then locked using the “Double Screw” clamp

Registered Design No. 4023419

View Product
ATP90

ATP90

2 PIECE HIGH WEAVER / PICATINNY FULLY ADJUSTABLE

A = 26.5mm – 29mm / 1.043 – 1.141 inch

B = 21mm / 0.827 inch

D =

Weight 140g

Adjustable for windage, elevation and height. Locking screws include a anti vibration coating which locate onto a hardened steel spigot to ensure no loss of zero. Upto 65 MOA vertical adjustment. Ideal for digital day / night vision scopes.

Registered Design No.6026145



View Product
HOP92

HOP92

1 PIECE HIGH WEAVER / PICATINNY

A = 21mm / 0.827 inch

B = 120mm / 4.724 inch

C = 9mm / 0.354 inch

D =

Weight 202g

Quick Release fixing to rail using indexable levers which can be set in any position required. Includes an integral bubble level. Triple screw rings for secure clamping.

View Product

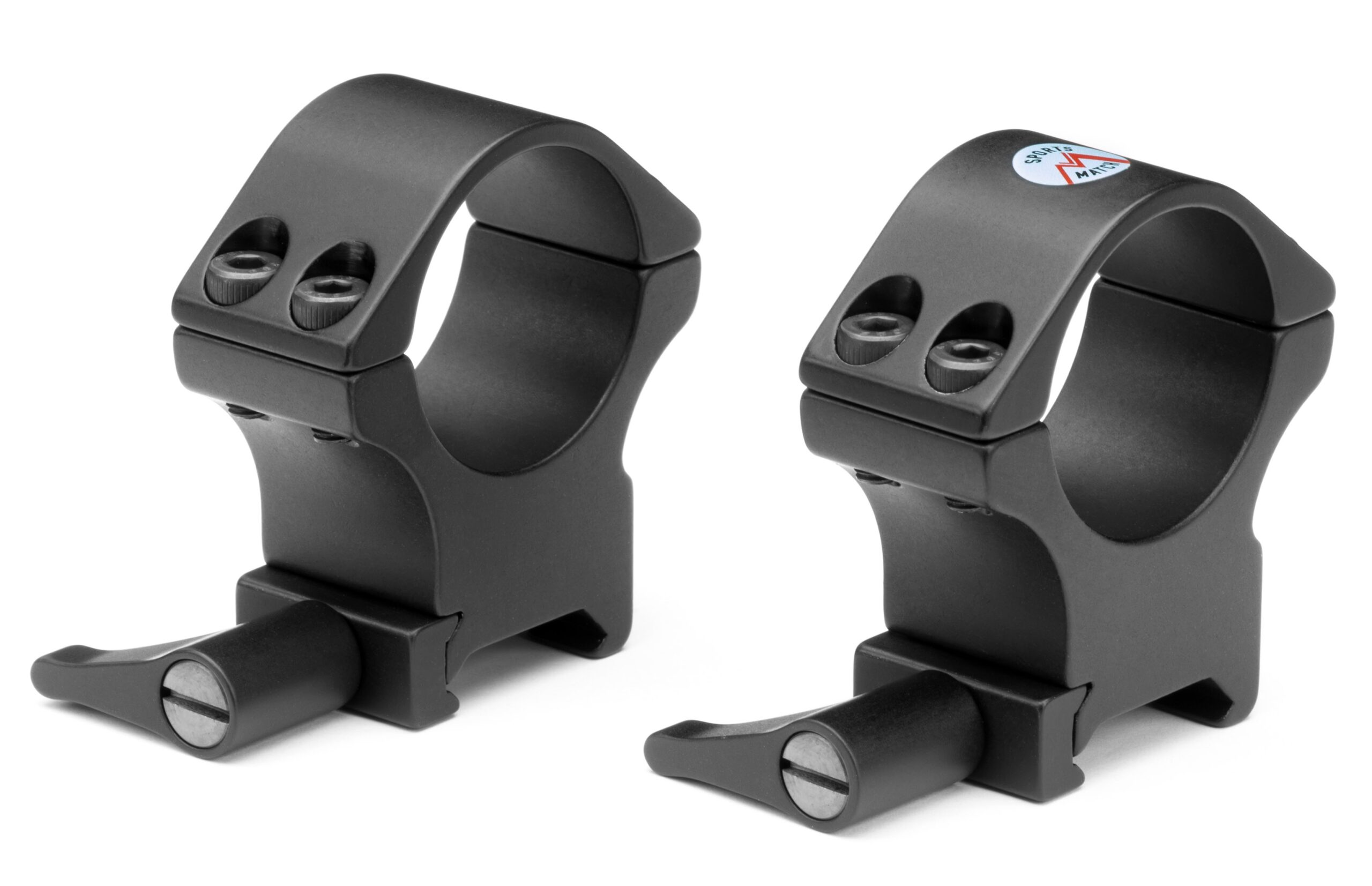

HTO100

HTO100

2 PIECE HIGH WEAVER / PICATINNY QD

A = 21mm / 0.827 inch

B = 21mm / 0.827 inch

D = 30mm / 1.181 inch

Weight 130g

Quick Release fixing to rail using indexable levers which can be set in any position required.

View Product
Where to buy
Scroll to Top

Height of Scope Mount Required

In each product catergory we state a maximum (upto) objective lens diameter dimension. Due to both rifle and scope designs varying this can only be used as a guide. If you are unsure that the height of the Sportsmatch scope mount you have chosen will be sufficient to clear your rifle scopes objective lens from the barrel of your rifle, we suggest (prior to purchase) you check. The way you calculate the clearance is by halving the overall outside diameter of your rifle scopes objective lens and then deducting half the rifle scopes body tube diameter. For scopes with a 1″ inch diameter body tube diameter this would mean deducting 12.7mm, 15mm for scopes with a 30mm diameter body tube and 17mm for 34mm scopes. This dimension then gives the figure comparible with the ‘A’ dimension that is shown below. The amount our ‘A’ dimension is greater than the figure you have calculated is the amount of clearance your scopes objective lens will be clear of your rifles barrel (dont forget to allow around 2mm for the scope covers). Calculating your rifle scopes clearance in this way does assume your dovetail or Picatinny rail is not raised above or below your rifles barrel. Please consider that rifles with grooved receivers such as some models of airgun and .22 rimfire rifle will mean the scope sits lower than a rifle with a raised dovetail or Picatinny base fitted. Something else to consider is that some rifles with a high or adjustable cheek pieces may require high or extra scope mounts so that your eye is in line with the rifle scope and your head is kept in an upright comfortable position.
