30mm High (Tikka / CZ527 / CZ557 / Sako 90 / etc)

By /

GreyBox30mm High Scope Mounts For 15mm and 17mm dovetails up to 56mm lens diameter (on most rifles).

PLEASE NOTE SUITABLE 15MM DOVETAILS E.G. CZ527 & TIKKA T3 WILL MEASURE APPROXIMATELY 17MM AT THE WIDEST POINT (TOP).
SUITABLE 17MM DOVETAILS E.G. CZ550 & CZ557 WILL MEASURE APPROXIMATELY 19MM AT THE WIDEST POINT (TOP) A B C Dimensions Explained

HTO73
HTO73

HTO73

2 PIECE HIGH 30mm TIKKA

A = 20mm  (0.787 inch)

B = 21mm  (0.827 inch)

D = 32mm  (1.259 inch)

E = 30mm

Weight 125 g  (4.4 oz.)

Suits Tikka T3 & T3x rifles. Also fits Tikka M55 M65 M590 M595 M695 Includes removable arrestor pin. Also fits Brno model 1 / 2 .22 rifles (check rear sight clearance)

View Product

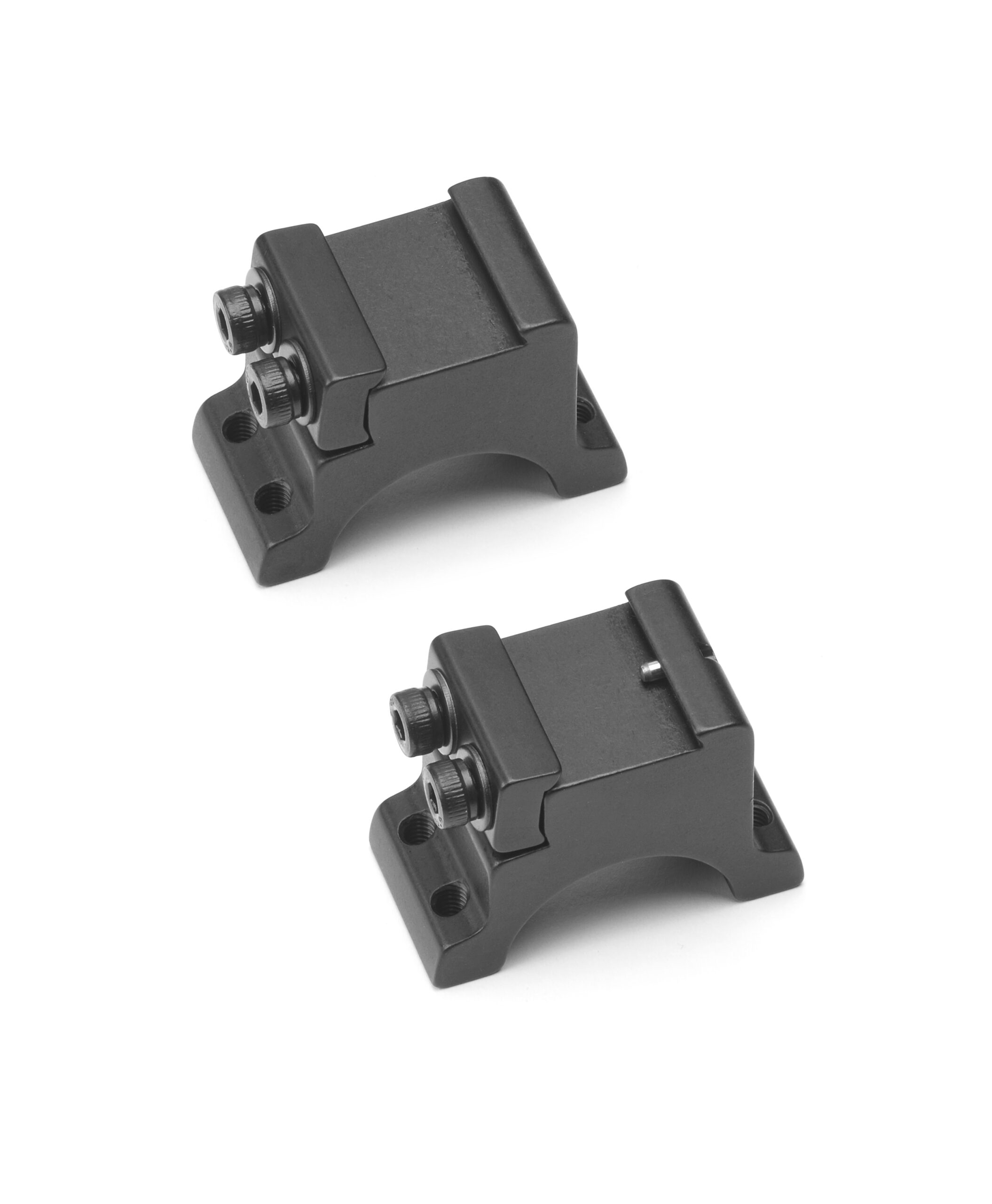

HTO74
HTO74

HTO74

2 PIECE HIGH 30mm CZ527 etc.

A = 20mm (0.787 inch)

B = 21mm (0.827 inch)

D = 32mm  (1.259 inch)

E = 30mm

Weight 125 g  (4.4 oz.)

Suits CZ 15mm dovetails such as CZ527 / Brno Model 1 / 2 & Fox. Includes removable arrestor pin

View Product

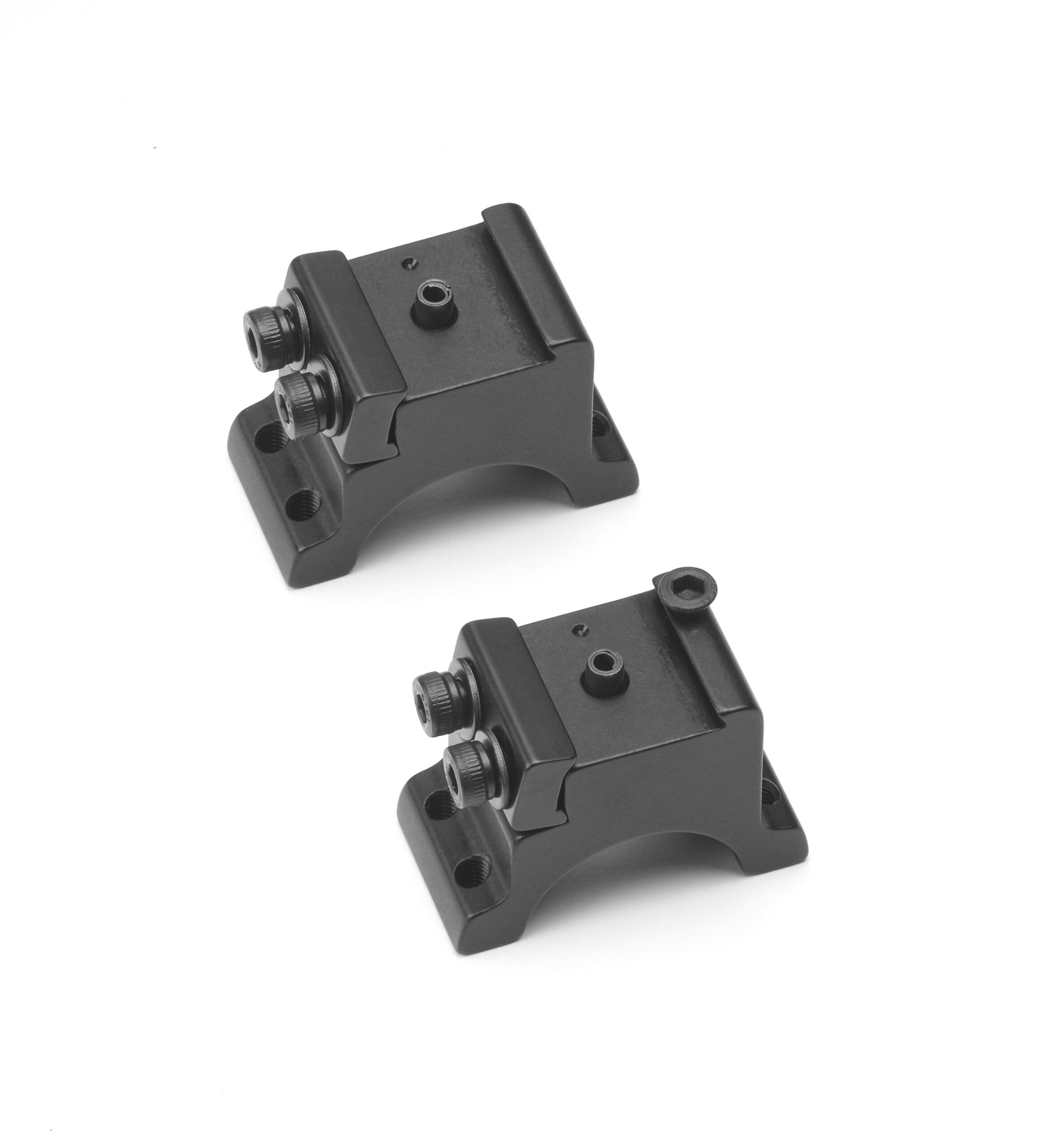

HTO75
HTO75

HTO75

2 PIECE HIGH 30mm CZ550 etc.

A = 20mm  (0.787 inch)

B = 21mm  (0.827 inch)

D = 32mm  (1.259 inch)

E = 30mm

Weight 125 g  (4.4 oz.)

Suits CZ 17mm dovetails such as CZ550, CZ557, ZKK600/601/602 etc BSA Monarch / Majestic etc centrefire rifles and Parker Hale bases. Includes removable arrestor pins (3)

View Product
HTO96 SAKO 90

HTO96 SAKO 90

2 PIECE HIGH 30mm

A = 20mm  (0.787 inch)

B = 21mm  (0.827 inch)

C = 8mm  (0.314 inch)

D = 32mm  (1.259 inch)

E = 30mm

Weight 132 g  (4.6 oz.)

For Sako 90 Hunter, Bavarian etc. with integral 15mm standard dovetails. Includes removable arrestor pin

View Product
Where to buy
Scroll to Top

Height of Scope Mount Required

In each product catergory we state a maximum (upto) objective lens diameter dimension. Due to both rifle and scope designs varying this can only be used as a guide. If you are unsure that the height of the Sportsmatch scope mount you have chosen will be sufficient to clear your rifle scopes objective lens from the barrel of your rifle, we suggest (prior to purchase) you check. The way you calculate the clearance is by halving the overall outside diameter of your rifle scopes objective lens and then deducting half the rifle scopes body tube diameter. For scopes with a 1″ inch diameter body tube diameter this would mean deducting 12.7mm, 15mm for scopes with a 30mm diameter body tube and 17mm for 34mm scopes. This dimension then gives the figure comparible with the ‘A’ dimension that is shown below. The amount our ‘A’ dimension is greater than the figure you have calculated is the amount of clearance your scopes objective lens will be clear of your rifles barrel (dont forget to allow around 2mm for the scope covers). Calculating your rifle scopes clearance in this way does assume your dovetail or Picatinny rail is not raised above or below your rifles barrel. Please consider that rifles with grooved receivers such as some models of airgun and .22 rimfire rifle will mean the scope sits lower than a rifle with a raised dovetail or Picatinny base fitted. Something else to consider is that some rifles with a high or adjustable cheek pieces may require high or extra scope mounts so that your eye is in line with the rifle scope and your head is kept in an upright comfortable position.
